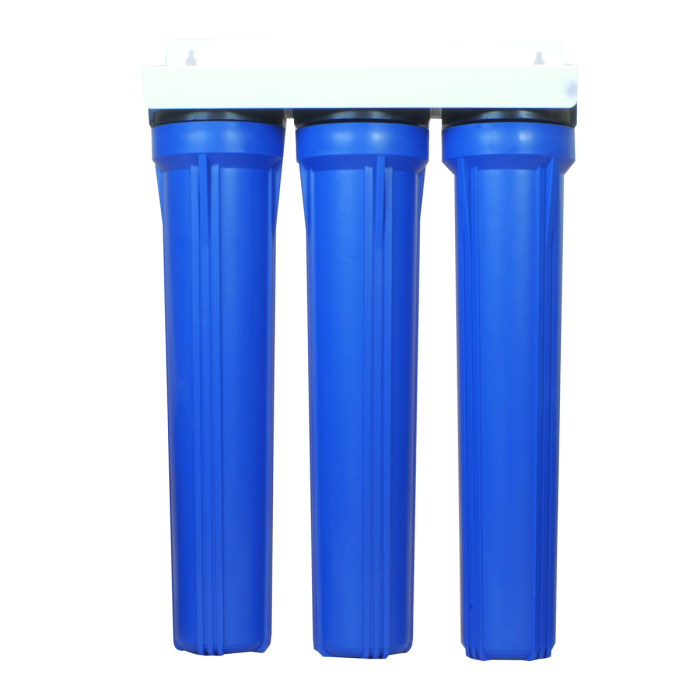

R5 Water Filters - 20" Three Stage 3/4" Outlets

In stock
SKU
B-4221P

20" R5 Three-Stage Water Filter with universal 3/4” Inlet/Outlet Ports. Available with empty Refillable Filter or Pre-filled with select filter media.

This is our R5 20" Three Stage Water Filter with 3/4" NPT Inlet/Outlets

Installation & Refill Guides

English Installation & Refill Guide (PDF)

Guía de instalación y recarga en español (PDF)


Charcoal House brand R5 (Revive Restore Recover Recycle Refill) Water Filters™ are perfect for whole-house applications as well as point-of-use in small commercial, industrial and farm applications.
  • Accepts 20” x 2.5” water filter cartridges
  • For normal household use, plan around six months per cartridge; replace sooner if water quality, use or reduced flow requires.
  • 5 micron rating
  • Flow Rate - 5 gallons/minute
  • Feed Water Pressure: 40-95 psi; Feed Water Temperature: 40-100°F

Do you need to remove sediment from well water? Do you have municipal water and want to remove chlorine or chloramine to improve taste and appearance? Is Fluoride or heavy metals affecting the quality of your drinking water? Do you need to recycle and reuse water from a commercial application? Then the R5 Water Filters™ allow you to use the proper filter for the right job.

Our business model here at Charcoal House is Purify and Beautify™. Keeping both you and the environment healthy is our focus. While most companies only offer disposable filters that just add more plastic to landfills, we carry the new refillable filters that allow you to replace the spent charcoal in minutes at a fraction of the cost of buying a whole new unit.

These filters can be reused up to 25 times. Right there you save an average of $4 per change. For normal household use, plan around six months per cartridge; replace sooner if water quality, use or reduced flow requires.

Because R5 Water Filters™ are re-useable, you can save even more money by purchasing a gallon of our Firebrand™ Granular Charcoal to do up to 6 changes.

The filter media options are:

Starting out you can:

Purchase a pre-filled Refillable Cartridge with the media of your choice. Or

Purchase the Empty Refillable Cartridges and then choose the filter media that best matches your water contamination.

  • For refillable granular-media cartridges, follow Revision 06 above: shut off and depressurize the system, remove the cartridge and open its bottom cap. Leave 1.5–2 inches of space, seat the foam ring inside the bottom cap, close it and quickly turn the cartridge upright. Reinstall and flush as directed in the guide. Replace disposable sediment cartridges; do not reuse them.
  • Uses a 3/4" Inlet/Outlet
  • Also included: a wall-mounting bracket and the canister wrench.

Many municipalities add chlorine or chloramines to the water supply, which, in addition to having an unpleasant odor, can damage and dry your skin and hair. By filtering chlorine, chloramines, and other contaminants, you'll enjoy cleaner, spring-like water from every tap in the house.

Today's worldwide water supply is becoming increasingly contaminated with hundreds of different pollutants and toxins. Conservation of our fresh water supply has never been so important. R5 Water Filters™ insure:

  • Great tasting water
    • Better than bottled water from every tap in your home
    • At a fraction of the cost
  • Better tasting food
  • Does NOT waste water
  • Requires NO electricity
  • NO drain required
  • Easy installation (inside or outside)
  • 6 month satisfaction guarantee
  • Limited Lifetime warranty on housing and parts

Left Over Charcoal?

Spent media from routine household use may go in household garbage, subject to local disposal rules.

*all R5 units and replacement filters are BPA free
